Center Height : 3.94" /100mm Center taper : MT2 Tilting range : 0-90º Overall Height : 173mm Base Length :…

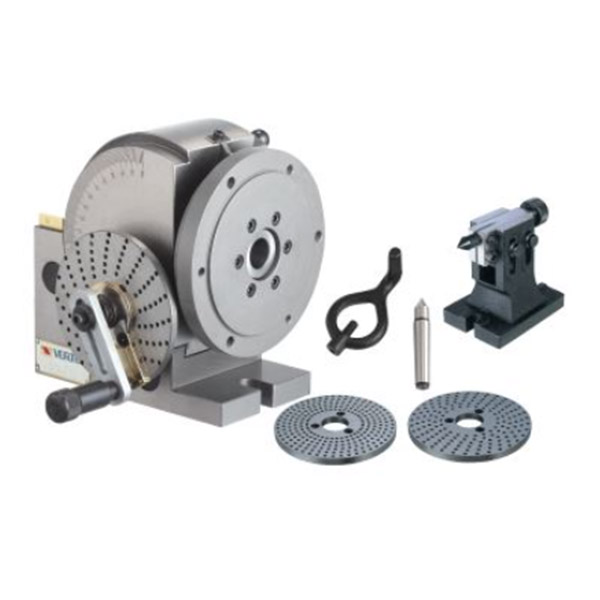

BS-0 SEMI-UNIVERSAL DIVIDING HEAD
- Center Height : 3.94″ /100mm
- Center taper : MT2
- Tilting range : 0-90º
- Overall Height : 173mm
- Base Length : 160mm
- Base Width : 91mm
- Bolt Slot: 16mm
- Spindle through hole Dia : 18mm
- The ratio of worm to gear : 1:40
- Dividing Plates, Tailstock, MT-2 Dead Center are included
- Applicable Chuck : 5″
- Brand : VERTEX
$1,033.47
Out of stock
Center Height : 5" /128mm Center taper : MT3 Tilting range : 0-90º Overall Height : 220mm Base Length :…
BS-1 SEMI-UNIVERSAL DIVIDING HEAD
- Center Height : 5″ /128mm
- Center taper : MT3
- Tilting range : 0-90º
- Overall Height : 220mm
- Base Length : 205mm
- Base Width : 114mm
- Bolt Slot: 16mm
- Spindle through hole Dia : 20mm
- The ratio of worm to gear: 1:40
- Dividing Plates, Tailstock, MT-3 Dead Center are included
- Applicable Chuck : 6″
- Brand : VERTEX
$1,341.24
1 in stock
Center Height : 5.28" /134mm Center taper : MT-4 Tilting range : 0-90º Overall Height : 235mm Base Length :…

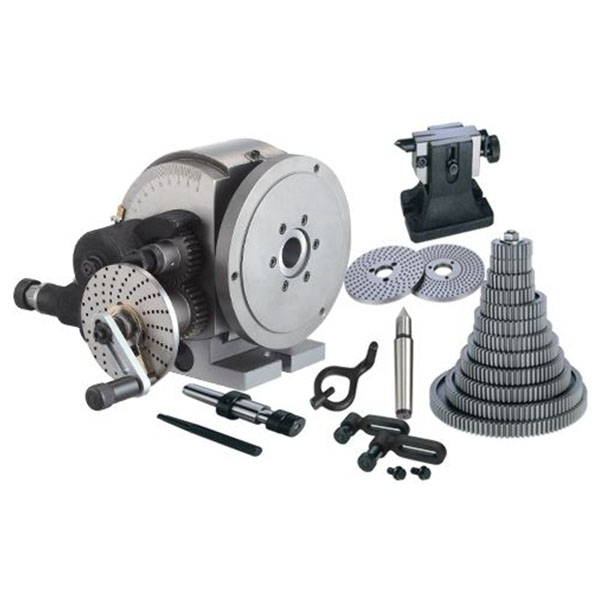

BS-2 UNIVERSAL DIVIDING HEAD
- Center Height : 5.28″ /134mm
- Center taper : MT-4
- Tilting range : 0-90º
- Overall Height : 235mm
- Base Length : 212mm
- Base Width : 135mm
- Bolt Slot: 16mm
- Spindle through hole Dia : 25mm
- The ratio of worm to gear: 1:40
- Set of Gears, Dividing Plates, Tailstock, MT-4 Dead Center are included
- Applicable Chuck : 6″, 8″
- Brand : VERTEX
$2,542.22
Out of stock
Accuracy : 0.02/100mm A x B : 200 X 500mm C x D : 300 X 400 E : 250mm…

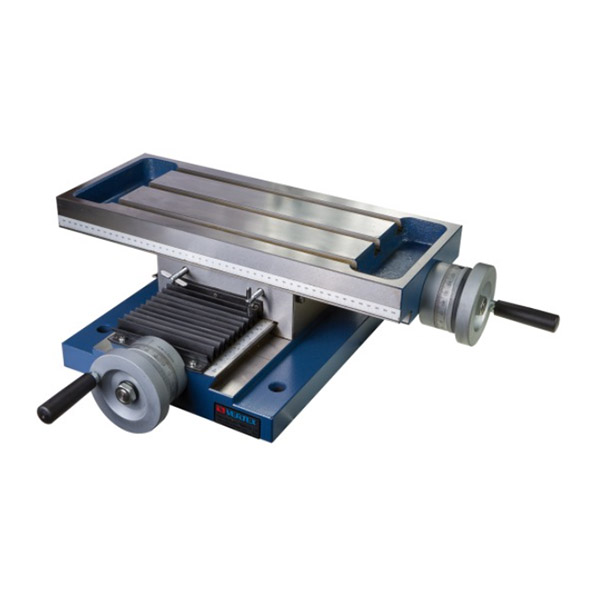

PRECISION CROSS TABLE VCT-820
- Accuracy : 0.02/100mm
- A x B : 200 X 500mm
- C x D : 300 X 400
- E : 250mm
- F : 290mm
- Travel Stroke : 200 x 250mm
- T-Slot : 3/8
- Rotary Dial Graduation : 0.02mm
- Overall Height : 155mm
- Maximum Allowable Load : 140kgf
- Brand : VERTEX
$3,367.84
1 in stock
Indcludes 7pcs ER40 Collet, Shank Diameter=40mm, Through Hole

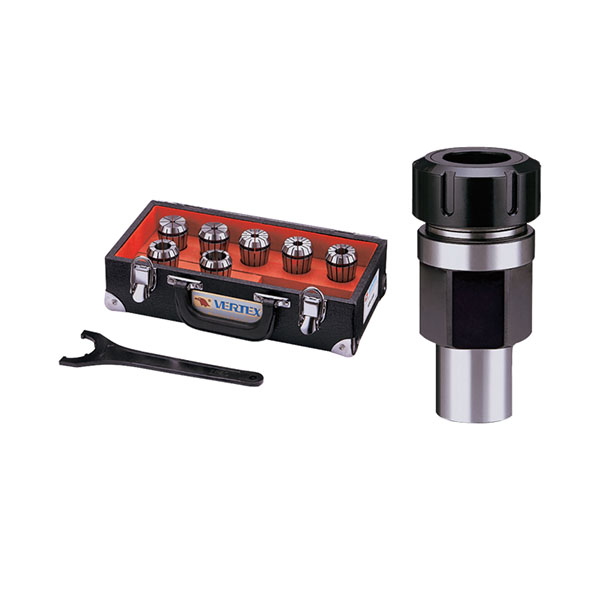

Quick Index Holder ER40 VFV-40H
Indcludes 7pcs ER40 Collet, Shank Diameter=40mm, Through Hole
Call for price
Clamping Capacity : 1/8-3.94″ Simple and rapid Operation Table Scale : 1˚ Center Bore Diameter : 1.18″ Hight : 5.315″…

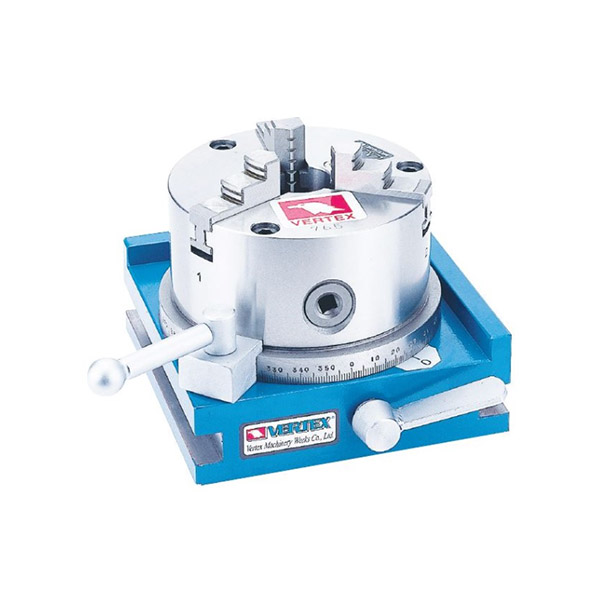

RAPID INDEXER WITH CHUCK VSI-4
- Clamping Capacity : 1/8-3.94″
- Simple and rapid Operation
- Table Scale : 1˚
- Center Bore Diameter : 1.18″
- Hight : 5.315″
- Table size W x L : 7.36″ x 5.75″
- Horizontal / Vertical Clamping possibility
- Suitable for Milling and Drilling Machine
- Optional Tailstock to order : TS-1
$1,034.88
Out of stock
Clamping Capacity : 1/8-5" Simple and rapid Operation Table Scale : 1˚ Center Bore Diameter : 1.18" Hight : 5.59"…
RAPID INDEXER WITH CHUCK VSI-5
- Clamping Capacity : 1/8-5″
- Simple and rapid Operation
- Table Scale : 1˚
- Center Bore Diameter : 1.18″
- Hight : 5.59″
- Table size W x L : 7.95″ x 6.34″
- Horizontal / Vertical Clamping possibility
- Suitable for Milling and Drilling Machine
- Optional Tailstock to order : TS-1
$900.07
2 in stock
Chuck Diameter : 6" Chuck center Height : 130mm Masking plates : 2, 3, 4, 5, 6, 8, 12 Center…

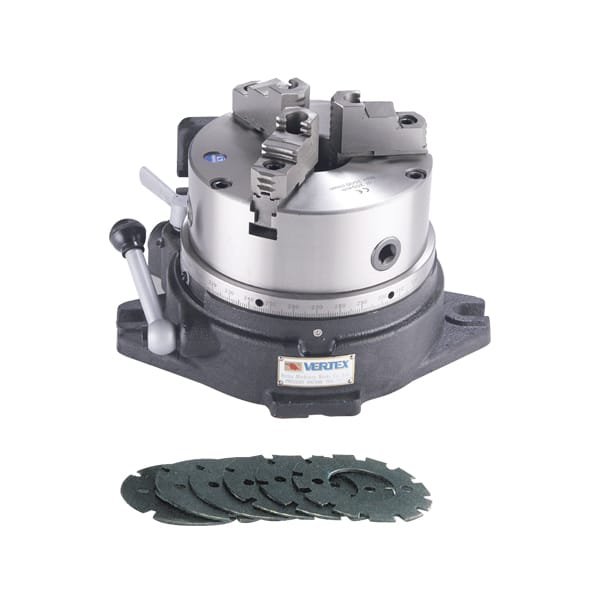

SIMPLE INDEXING SPACER CC-6
- Chuck Diameter : 6″
- Chuck center Height : 130mm
- Masking plates : 2, 3, 4, 5, 6, 8, 12
- Center hole Diameter : 44mm
- Overall Height : 225mm
- Base Length: 253mm
- Base Width : 115mm
- Bolt Slot : 16mm
- Inner jaws range : 55-145mm
- Outer jaws range : 3-160mm
- Squareness and Parallelism : 0.02mm/100mm
- Brand : VERTEX Taiwan
$1,279.52
2 in stock
Chuck Diameter : 8" Chuck center Height : 157mm Masking plates : 2, 3, 4, 5, 6, 8, 12 Center…
SIMPLE INDEXING SPACER CC-8
- Chuck Diameter : 8″
- Chuck center Height : 157mm
- Masking plates : 2, 3, 4, 5, 6, 8, 12
- Center hole Diameter : 63mm
- Overall Height :274mm
- Base Length: 230mm
- Base Width : 155mm
- Bolt Slot : 16mm
- Inner jaws range : 65-200mm
- Outer jaws range : 4-200mm
- Squareness and Parallelism : 0.02mm/100mm
- Brand : VERTEX Taiwan
$1,941.51
2 in stock
Chuck Diameter : 6" Chuck center Height : 4.84"/ 123mm Number of dividing : 2, 3, 4, 5, 6, 8,…

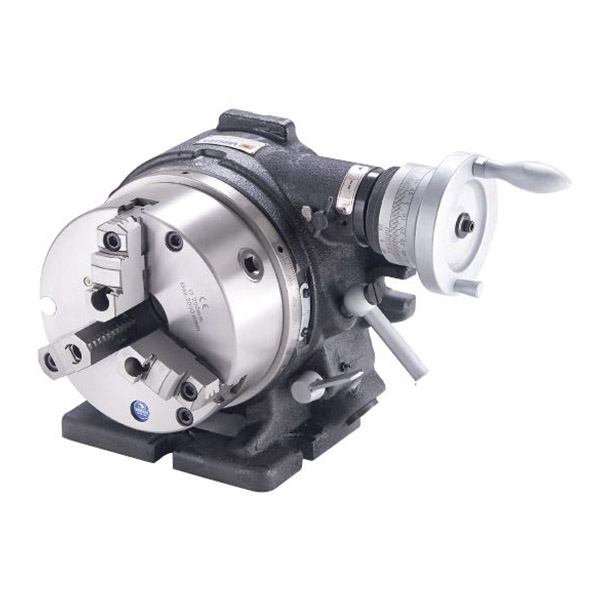

SUPER INDEXING SPACER CS-6
- Chuck Diameter : 6″
- Chuck center Height : 4.84″/ 123mm
- Number of dividing : 2, 3, 4, 5, 6, 8, 12, 24
- Reduction ratio : 1 : 90
- Scale of the micro collar : 2′
- Center hole Diameter : 44mm
- Overall Height : 235mm
- Base Length: 220mm
- Base Width : 150mm
- Bolt Slot : 16mm
- Brand : VERTEX
$1,593.26
1 in stock
Chuck Diameter : 8" Chuck center Height : 6.1"/ 155mm Number of dividing : 2, 3, 4, 5, 6, 8,…
SUPER INDEXING SPACER CS-8
- Chuck Diameter : 8″
- Chuck center Height : 6.1″/ 155mm
- Number of dividing : 2, 3, 4, 5, 6, 8, 12, 24
- Reduction ratio : 1 : 90
- Scale of the micro collar : 2′
- Center hole Diameter : 58mm
- Overall Height : 285mm
- Base Length: 225mm
- Base Width : 160mm
- Bolt Slot : 16mm
- Brand : VERTEX
$2,096.76
2 in stock
