MILLING TOOL SN45 D2.00-A.750/1.75-04-12

SNH 45º Face Mills

• Strong Pocket design
•Wide Chip Gullets for maximum chip evacuation
• Double sided Technology
• Through Coolant
• Satin Nickel plating for longevity

2.000″ diameter cutter. 45° facing, arbor mounting, 0.750″ coupling diameter, 1.750″ long,

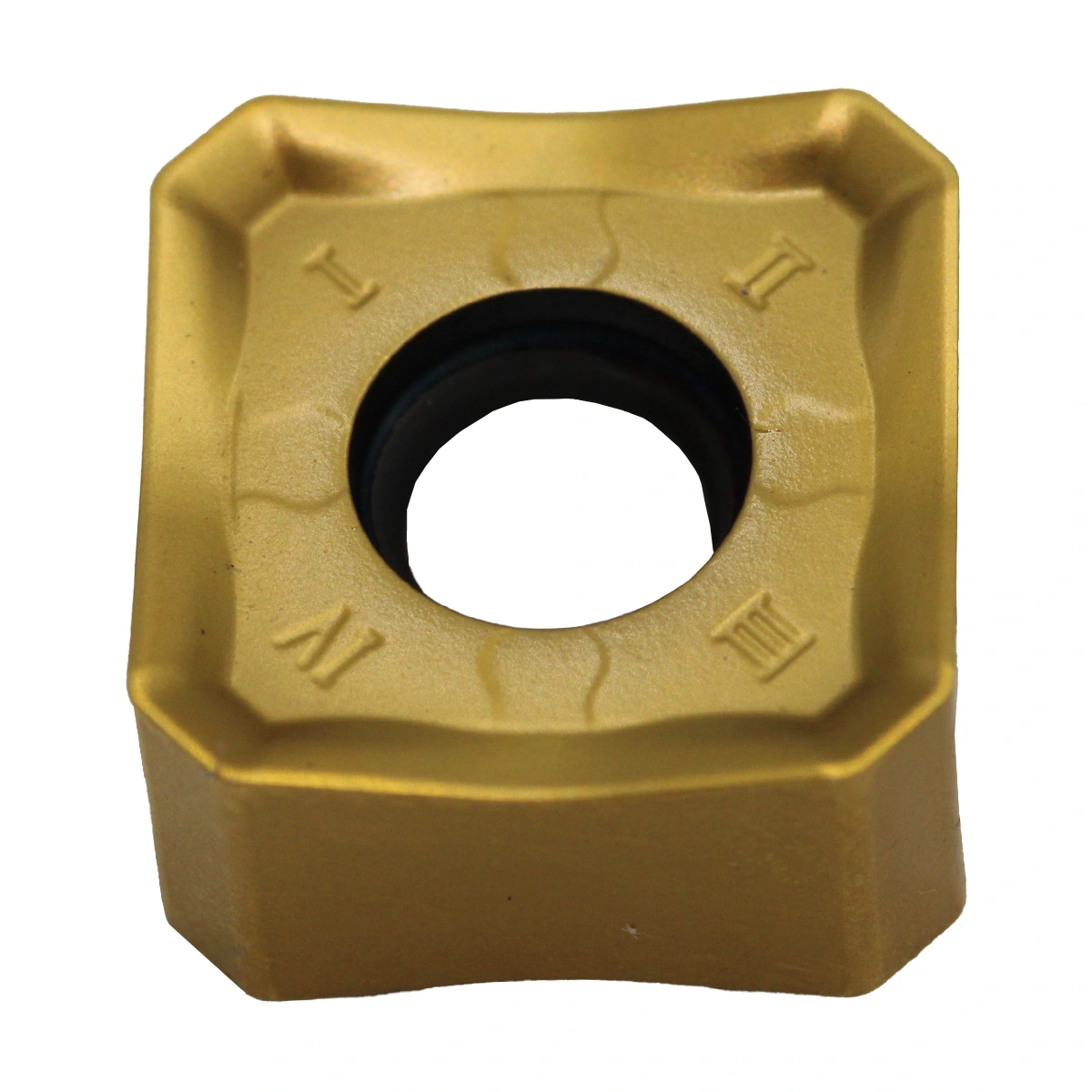

4 inserts of “SNHX 1206…” group, and size 12mm.

Operation (refer to the attached photo):
Main type of operation: Facing,
Other type of operation: Slanted shoulder & chamfer.
