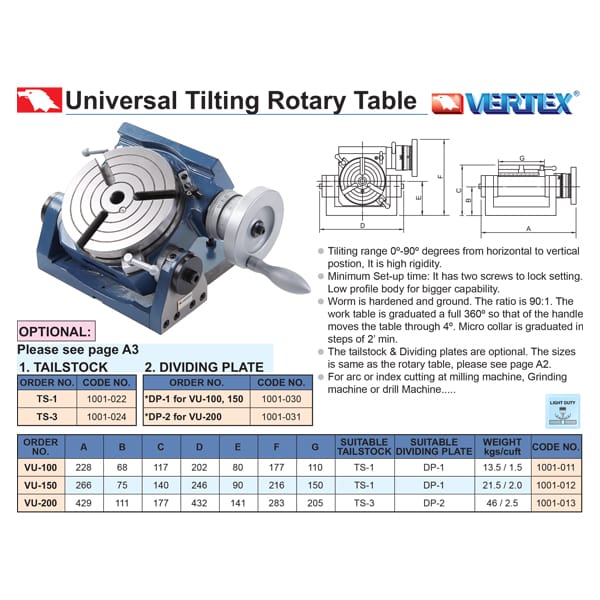

UNIVERSAL TILTING ROTARY TABLE VU-150
Tiliting range 0-90 degrees from horizontal to vertical postion, It is high rigidity.
Minimum Set-up time: It has two screws to lock setting. Low profile body for bigger capability.
Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360˚ so that of the handle moves the table through 4˚. Micro collar is graduated in steps of 2’ min.
For arc or index cutting at milling machine, Gringing machine or drill Machine….
The tailstock & Dividing plates are optional.
* TAILSTOCK TS-1 order number 1001-022 (optional)
* DIVIDING PLATE DP-1, order number: 1001-030 (optional)
Call for price
