• Designation : HF90-D0.625-W0.625-L5.00-02-03
• Suitable for : Shouldering, Facing, Slotting, Helical interpolation and Ramping
• Diameter D : 0.625″
• Weldon Shank Diameter S : 0.625″
• Neck Length L1 : 1.90″
• Overall Length L : 5″
• Number of pocket : 2
• Coolant thru feature
• Key is included
• Inserts are sold separately

High feed cutting with low cutting load.
High productivity.

1.000″ diameter cutter. 10° facing, weldon shank, 1.000″ coupling diameter, 5.000″ long, 3 inserts of “SOEW 0803…” and “SOET 0803…” group and size 8mm.

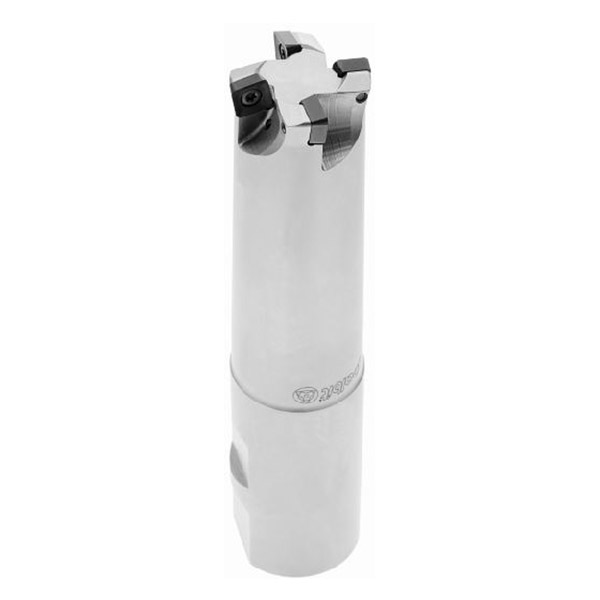

Operation (refer to the attached photo):
Main type of operation: Facing, Profiling.
Other type of operation: Ramp down, Plunging, Helical interpolation.
