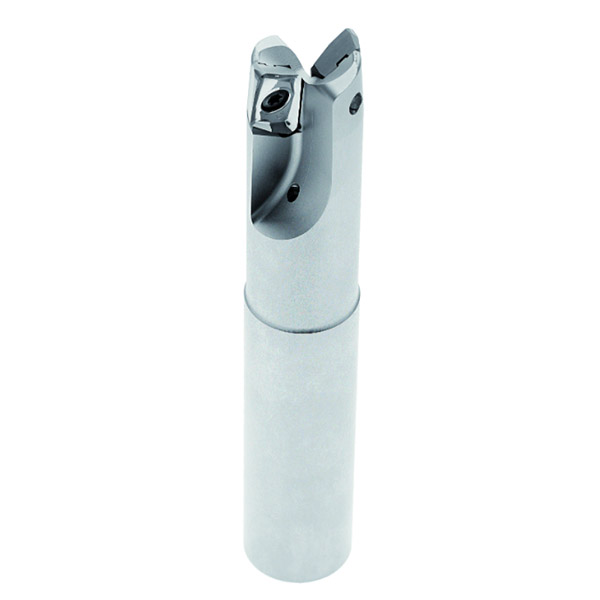

MILLING TOOL XD90 D1.00-C1.00/6.00-02-15

Shoulder milling.
Solution for multi functional milling operations on aluminum alloys
High speed conditions with high metal removel rate
Stable clamping conditions (Anti-fly)
High rake angle geometry that provides a good surface finish and low cutting forces

0.750″ diameter cutter. 2.000″ diameter cylindrical shank, 6″ long. 1 inserts of “XDGX 15M5…” group size 15mm. 38,000 RPM Max.

Operation (refer to the attached photo)
Main type of operation: Shouldering.
Other type of operation: facing, slotting, Ramp down, Helical interpolation, Profiling.
