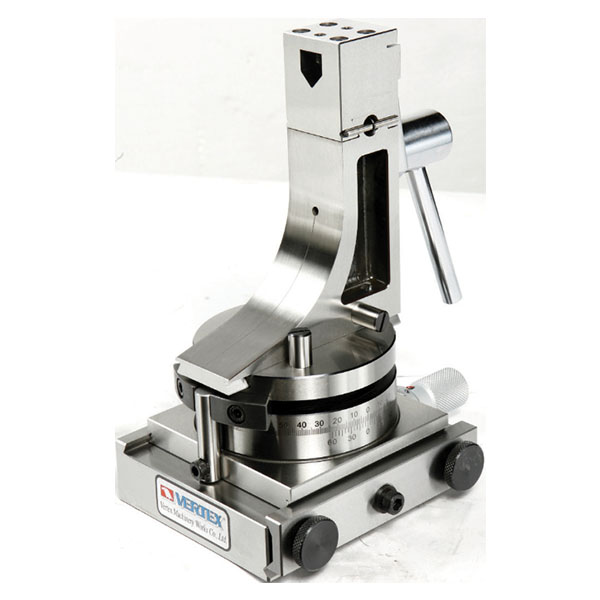

UNIVERSAL WHEEL DRESSER V-TDC
The wheel dresser that dresses two angles tangent to a radius in one continuous motion with .0001~0.0002m/m accuracy.
The wheel dresser with a micrometer feed-0.98″(25mm) travel.
Fluidmotion means YOU CAN dress two angles tangent to a radius in one continuous motion-with only one setting.
The diamond automatically returns to center position after dressing angles. Thus even a beginner can dress complex froms quickly and accurately.(center height 195mm)
ELIMINATES ELABORATE SETUPS
No need to pre-set diamond, or use any other tool except a micrometer and a simple hex wrench.
No Gage block-Master Gage setting-Jo Block-Parallel Bar-Surface Plate-height Gage_dial Indicator.
No movement of dovetails necssary to form angles. The angle is dressed by continuing to push handle in both directions after radius is formed.
No need to use Gibs & V-Ways other than positioning surfaces.
ACCURATE-RAPID, REPAT FORM-DRESSING
Fluidmotion generates clean, precise wheel profiles entirely free of chatter marks. Without fluidmotion a perfect blend of angles and radius is improbable.
PRECISE SHARP CONTOURS-concave or convex, at a full 180 degrees, are obtained consistently with (GUARANTEED) 0.001″ accuracy.
HOLD INTERSECTING ANGLES 12 to 15 seconds. This is accomplished by operating upright and handle.
Setting up two angles requires 10 seconds. Setting two angles and radius requires less than 3 minutes.
THE MOST DURABLE DRESSER AVAILABLE
Manufactured from hardened, ground and lapped alloy steels.
No wearing surfaces. Swivels on sealed bearings.
This form tangent in one setting-two angles-two radius-one flat.
MAX. Swing distance of diamond cutter……±14mm
Measuring guasi-pin dia……ø10
MAX. Wheel dia……ø200mm
Reading accuracy of turret index……5′
Feed per dirision of handle scale……0.01mm
To dress convex arc surface:H=L+R
To dress concave arc surface:H=L+(-R)
H:Distance between outer generating lines of two locating pins.
R:Radius of the arc surface to be dressed
L:Distance from tip of diamond cutter to ase plate
