Self Centering Chucks
View

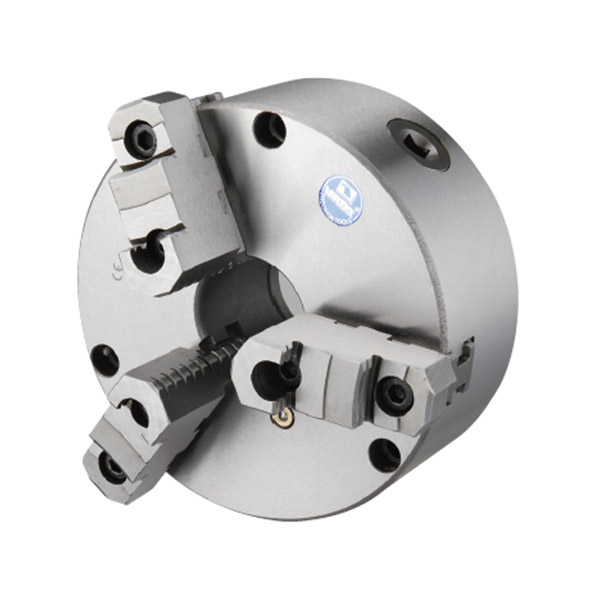

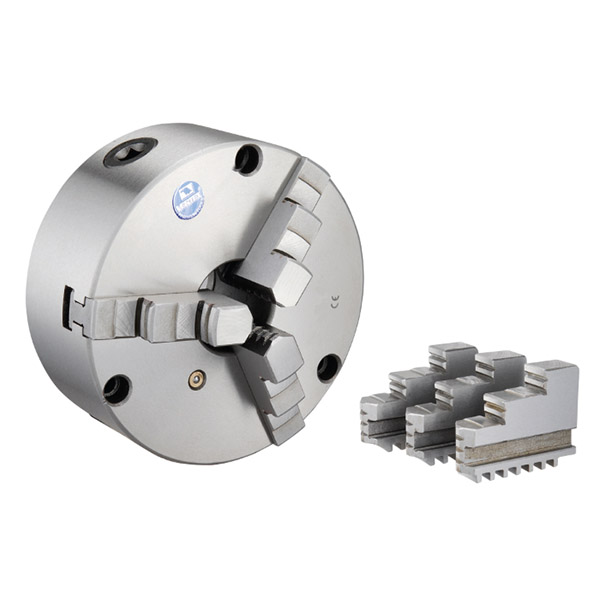

Plain back with reversible top Jaws OD=10" External Gripping Range: 0.473"-10.24" Internal Gripping Range: 3.15"-9.84" Thread : 3 X M12…
Plain back with reversible top Jaws Front and back mount D : 250mm/10" d1 : 110mm d2 : 130mm d3…
Plain back with reversible top Jaws Front and back mount D : 250mm/10" d1 : 206mm d2 : 226mm d3…
Plain back with reversible top Jaws OD=10" External Gripping Range: 0.452"-13.78" Internal Gripping Range: 4.33"-13.38" Thread : 3 x M16…
Plain back with reversible top Jaws Front and back mount D : 320mm/12" d1 : 140mm d2 : 165mm d3…
Plain back with reversible top Jaws Front and back mount D : 315mm/12" d1 : 260mm d2 : 285mm d3…
Front mount with plain back self centering Chuck OD capacity : 0.12" -3.54" ID Capacity : 1.26"-3.31" Bolt size :…
Plain back with reversible top Jaws OD=6" External Gripping Range: 0.315"-6.30" Internal Gripping Range: 2.165"-5.90"
Plain back with reversible top Jaws Front and back mount D : 160mm/6" d1 : 65mm d2 : 95mm d3…
Plain back with reversible top Jaws Front and back mount D : 165mm/6" d1 : 130mm d2 : 142mm d3…
Plain back with reversible top Jaws OD=8" External Gripping Range: 0.315"-7.09" Internal Gripping Range: 2.44"-6.70" Thread : 3 X M12…
Plain back with reversible top Jaws Front and back mount D : 200mm/8" d1 : 80mm d2 : 112mm d3…
Plain back with reversible top Jaws Front and back mount D : 200mm/8" d1 : 165mm d2 : 180mm d3…
Front mount with plain back self centering Chuck OD capacity : 0.24" -8.66" ID Capacity : 2.76"-9.84" Bolt size :…
Front mount with plain back self centering Chuck OD capacity : 0.394" -11.8" ID Capacity : 3.39"-11.42" Bolt size :…
Front mount with plain back self centering Chuck OD capacity : 0.12" -4.33" ID Capacity : 1.38"-3.94" Bolt size :…
Self centering lathe chucks

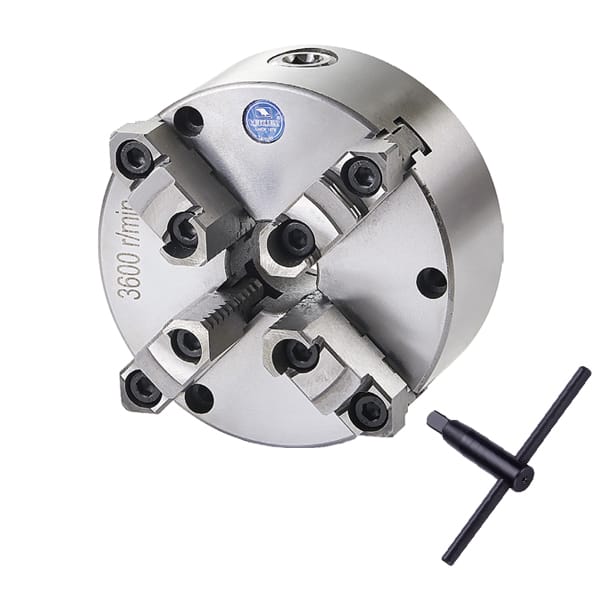

Also known as universal chucks or scroll chucks are the most popular chucks in lathe machining. They can be equipped with 3 jaws for gripping round parts 2 jaws for rectangular parts or 4 jaws for square parts or even more jaws for other types of parts with symmetrical or polygonal profiles or thin wall round parts.
The self-centering capability of this type of chuck is within an acceptable tolerance range. The best machining tolerance can be achieved if all the machining operations on the part is done in one clamping.
