Tooling System
View
Made of high Alloy Spring Steel Hardened surface to 44-48 HRC Outside Diameter : 8.5mm Length : 13.5mm Range :…
Interchangeable with BILZ System #3 Shank Diameter D1: 1.250" Head Diameter D : 3.2" Gauge Length L1: 4″ Shank Length…
Made of high Alloy Spring Steel Hardened surface to 44-48 HRC Outside Diameter : 8.5mm Length : 13.5mm Range :…
Made of Alloy Steel Hardened to HRC 58-62 Accuracy : 0.0004" Arbor Diameter : 1" Shank Diameter : 3/4 Shank…
Ideal for Manual and CNC Lathe Shank Dia : 1" Weldon Shank Length : 2.76" Head Length : 4.21" Taps…
Ideal for CNC Lathe Shank Dia : 1" Weldon Shank Length : 2.76" Head Length : 4.21" Taps Range :…

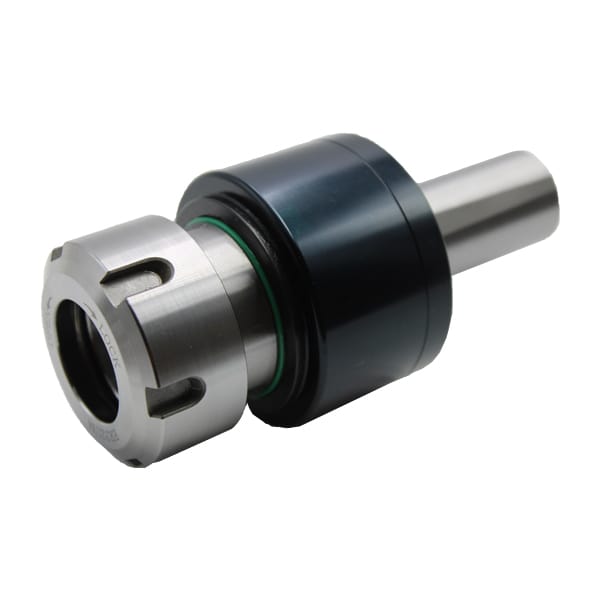

Made of high-grade hardened steel for durability and long-lasting performance Accept Standard ER32 Collets (available in Imperial and MM) Provides…
ER40 Collet Chuck series Hole Size 1 inch Tool holding range 1.000"-0.961" Made of high alloy spring steel Hardened surface…

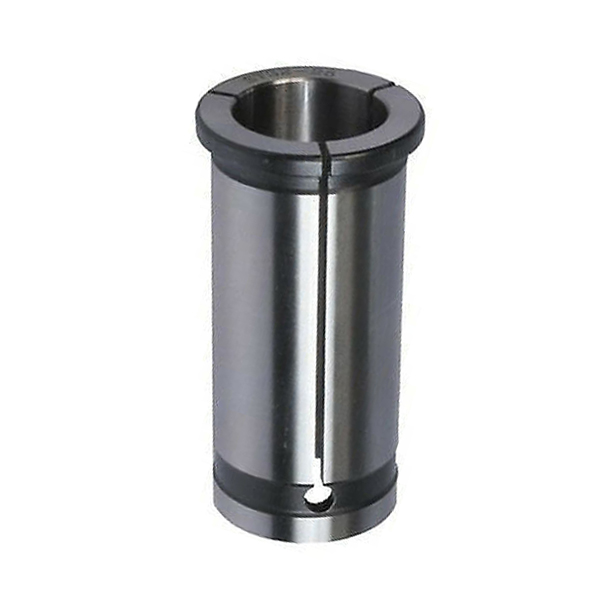

Collet series MC1.25 Made from Alloy Spring Steel Runout tolerance within 0.0004" All critical surfaces are ground Collet size :…
Rigid Quick Change Tapping Holder Interchangeable with BILZ System #1 Shank Dia. D1 : 1" Head Dia. D : 1.40"…
Rigid Quick Change Tapping Holder Interchangeable with BILZ System #2 Shank Dia. D1 : 1" Head Dia. D : 2"…
High Precision Tension and Compression CNC Lathe Tap Collet Holder Interchangeable with Bilz #1 Collet and Holder Provides Axial Floating…
Interchangeable with BILZ System #1 Shank Diameter D1 : 1" Head Diameter D : 1.43" Gauge Length L1 : 1.65″…
Interchangeable with BILZ System #2 Shank Diameter D1: 1" Head Diameter D : 2.16" Gauge Length L1: 2.54″ Shank Length…
Interface: HSK63A Bore Size : 1" Projection length : 4" Runout Accuracy : ≤ 0.0001" Balanced: G2.5 @ 25,000 RPM…
Collet Shank Diameter : 0.750" (19mm) Tap Shank Diameter : 0.367" Tap Square : 0.275" Ideal for Tap size :…
