Diameter of the Table : 10"/250mm Center Taper : MT-3 Gear ratio : 1:90 Vernier reading : 10 second One…

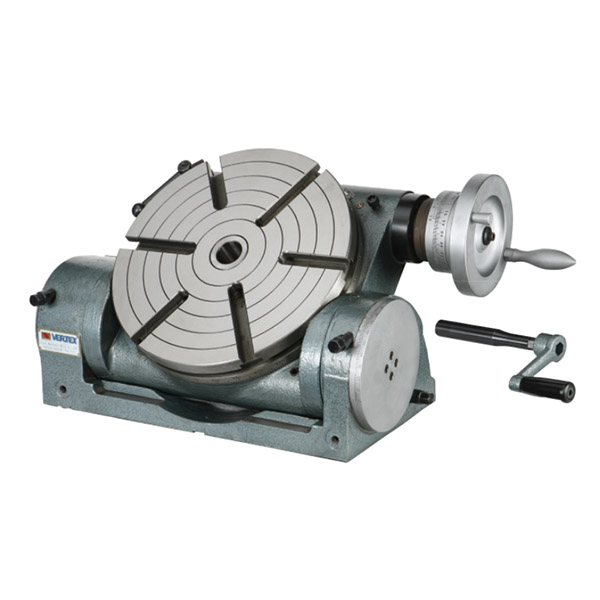

TILTING ROTARY TABLE VUT-10
- Diameter of the Table : 10″/250mm
- Center Taper : MT-3
- Gear ratio : 1:90
- Vernier reading : 10 second
- One handle rotation : 4º
- Scale of the collar : 1′
- Center Height : 150mm
- Tilting range : 0-90º
- Low profile, low center height
- Tilting by rigid and strong design, 2 supporter and rigid clamping system construction
- Minimum set up time
- Tilting angle can be adjusted by worm and worm gear system
- Worm shafts are hardened and ground
- Tailstock to order : TS-3 (1001-024)
- Diving Plate to order : DP-3(1001-032)
- Brand : VERTEX
$5,896.23
Out of stock
Diameter of the Table : 12"/300mm Center Taper : MT-4 Gear ratio : 1:90 Vernier reading : 10 second One…
TILTING ROTARY TABLE VUT-12
- Diameter of the Table : 12″/300mm
- Center Taper : MT-4
- Gear ratio : 1:90
- Vernier reading : 10 second
- One handle rotation : 4º
- Scale of the collar : 1′
- Center Height : 169mm
- Tilting range : 0-90º
- Low profile, low center height
- Tilting by rigid and strong design, 2 supporter and rigid clamping system construction
- Minimum set up time
- Tilting angle can be adjusted by worm and worm gear system
- Worm shafts are hardened and ground
- Tailstock to order : TS-3 (1001-024)
- Diving Plate to order : DP-3(1001-032)
- Brand : VERTEX
$5,733.09
Out of stock
Diameter of the Table : 6"/150mm Center Taper : MT-2 Gear ratio : 1:90 Vernier reading : 20 second One…

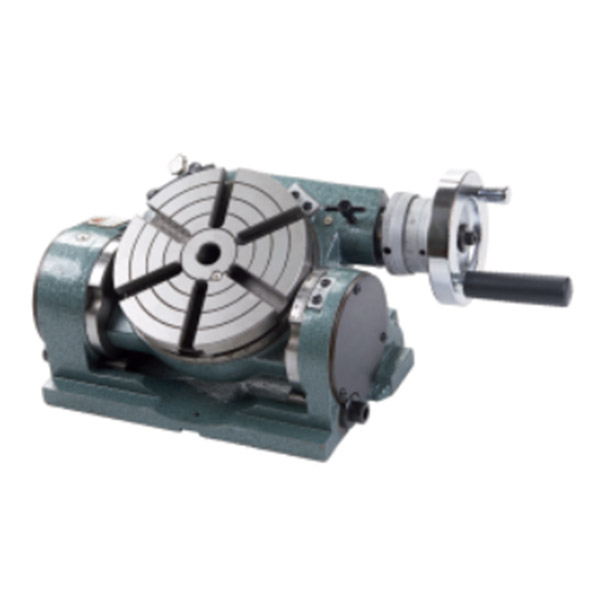

TILTING ROTARY TABLE VUT-6
- Diameter of the Table : 6″/150mm
- Center Taper : MT-2
- Gear ratio : 1:90
- Vernier reading : 20 second
- One handle rotation : 4º
- Scale of the collar : 2′
- Center Height : 90mm
- Tilting range : 0-90º
- Low profile, low center height
- Tilting by rigid and strong design, 2 supporter and rigid clamping system construction
- Minimum set up time
- Tilting angle can be adjusted by worm and worm gear system
- Worm shafts are hardened and ground
- Tailstock to order : TS-1 (1001-022)
- Diving Plate to order : DP-1(1001-030)
- Brand : VERTEX
$4,040.01
Out of stock
The tailstock & Dividing plates are optional. TAILSTOCK TS-1 order number 1001-022 (optional) DIVIDING PLATE DP-1, order number: 1001-030 (optional)

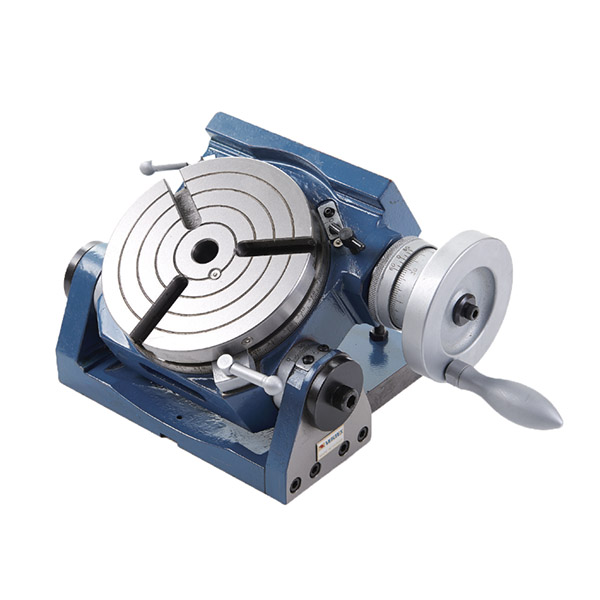

UNIVERSAL TILTING ROTARY TABLE VU-100
The tailstock & Dividing plates are optional.
- TAILSTOCK TS-1 order number 1001-022 (optional)
- DIVIDING PLATE DP-1, order number: 1001-030 (optional)
$1,468.75
Out of stock
Tilting range : 0-90 degrees from horizontal to vertical position Minimum Set-up time Low profile body for bigger capability Worm…
UNIVERSAL TILTING ROTARY TABLE VU-150
- Tilting range : 0-90 degrees from horizontal to vertical position
- Minimum Set-up time
- Low profile body for bigger capability
- Worm is hardened and ground
- The ratio : 90:1
- Table graduation : 0- 360˚
- Micro collar graduation: 2’ (min)
- Table Diameter : 6″
- Optional Tailstock to order : TS-1 (1001-022)
- Dividing Plate to order : DP-1(1001-030)
$1,531.74
Out of stock
Tilting range : 0-90 degrees from horizontal to vertical position Minimum Set-up time Low profile body for bigger capability Worm…
UNIVERSAL TILTING ROTARY TABLE VU-200
- Tilting range : 0-90 degrees from horizontal to vertical position
- Minimum Set-up time
- Low profile body for bigger capability
- Worm is hardened and ground
- The ratio : 90:1
- Table graduation : 0- 360˚
- Micro collar graduation: 2’ (min)
- Table Diameter : 8″
- Optional Tailstock to order : TS-3 (1001-024)
- Dividing Plate to order : DP-2(1001-031)
$1,691.60
Out of stock
