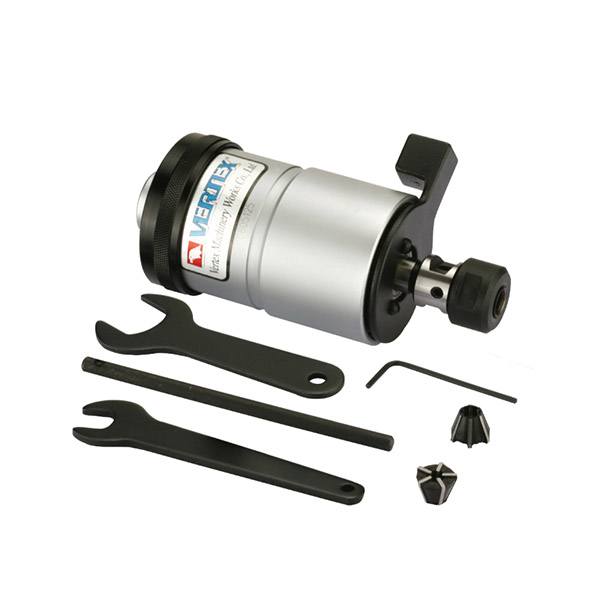

These products are designed to be used for tapping projects on DRILLING machines with manual feed and no reversible spindle.They also have adjustable torque to avoid tapping breakage.

For tapping sizes M8 to M20 (Tapping rubber FC-30 and FC-31
Attachment to spindle: M20 threaded hole
Max speed: 600RPM

Radial Float is SELFCENTERING to compensate for hole center misalignment.
Unique Double Spring Mechanism produces Automatic Feed and Cushion Drive. There are two springs for the feed and two springs for the reversal.
Each set gives you double smoothness for ULTRA accurate tapping applications(not possible with this type of tapping head in the past).
Pre-set Torque Control Permits easy operation of tap brake torque control JACOBS RUBBER FLEX COLLETS are standard accessory.

• Tapping range : M2 to M7
• Taper Jacob: J6
• Max speed:   1500RPM
• Includes:  Rubber Collet FC-10 and FC-11
• Brand : VERTEX

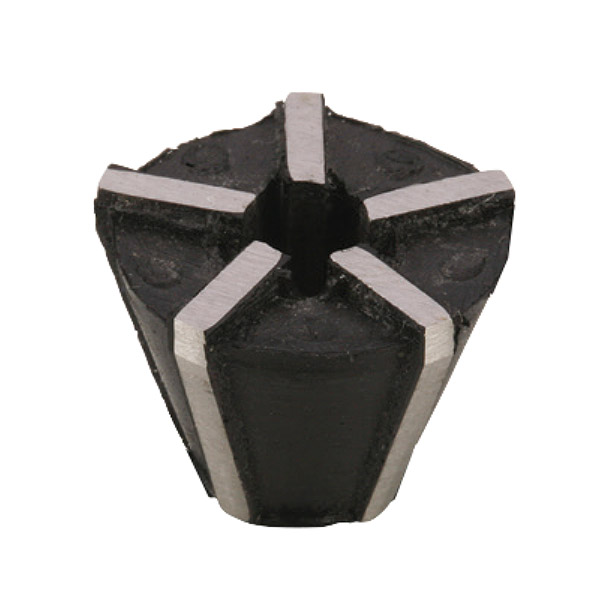

Rubber Flex Collet for Reversible Tapping Attachment VTA12-JT6 NO.1

Rubber Flex Collet for Reversible Tapping Attachment VTA12-JT6 NO.2
