BT40 ER11M 4″ Collet Chuck Tool Holder

SKU: 3004-0102 Category:
  • Made of Special Alloy Steel
  • Surface hardened to 62 HRC
  • All critical surfaces are ground.
  • Dynamically balanced to G2.5 at 20,000RPM
  • Each holder comes with a clamping Nut
  • Taper to Taper runout <0.0002″

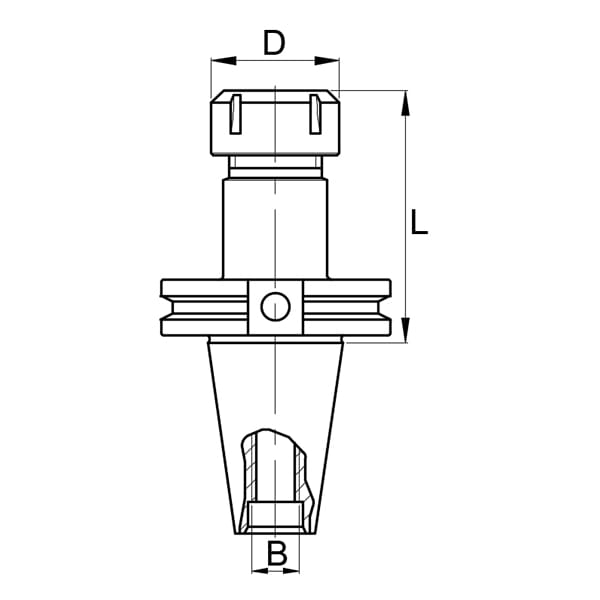

  • Gauge length L1 :  4″
  • Nut outer diameter D : 0.63″
  • Pull Stud thread : M16 x 2.0
  • Coolant thru capability
  • ER11 capacity : 1/16-1/4 (1-7mm)
  • Wrench and pull stud are not included
  • Wrench Code No. : 3006-0010
  • Spare Nut  Code No. : 3005-0010
  • Compatible Pull Studs: 3015-0250, 3015-0270, 3015-0120, 3015-0030, 3015-0040, 3015-0078, 3015-0290, 3015-1110

$72.00

3 in stock

  • Weight:
    2.36 lbs
  • Dimensions:
    8 × 2.8 × 2.8 in
