Excellent solution for square shoulder milling
Offers longer tool life, better tolerances and better productivity parameters
Low power requirement & smooth cutting possible due to positive helical angle
Very flexible and suitable for most milling operations
High positive cutting rake geometry

0.500″ diameter cutter. Weldon shank mounting, 0.500″ coupling diameter, 3.150″ long. 2 inserts of “XPET 0602…” size 6mm.

Operation (refer to the attached photo)
Main type of operation: Shouldering.
Other type of operation: Facing, Helical interpolation, slotting, ramp down.

Excellent solution for square shoulder milling
Offers longer tool life, better tolerances and better productivity parameters
Low power requirement & smooth cutting possible due to positive helical angle
Very flexible and suitable for most milling operations
High positive cutting rake geometry

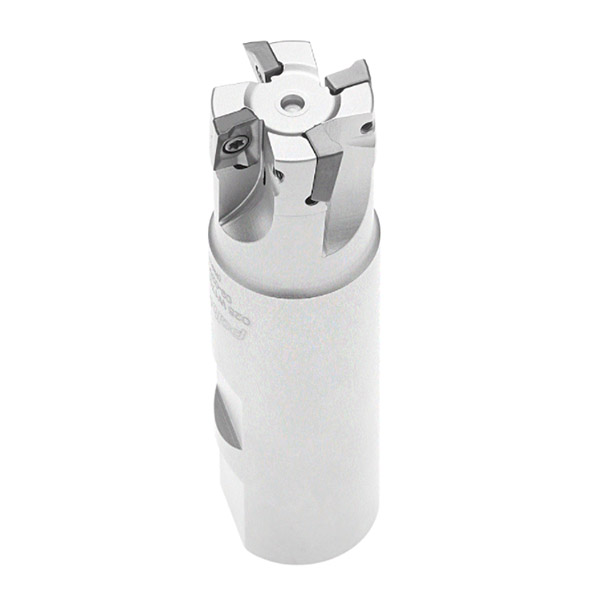

1.25″ diameter cutter. Weldon shank mounting, 1.25″ coupling diameter, 4.33″ long. 2 inserts of “XPET 1706…” size 17mm.

Operation (refer to the attached photo)
Main type of operation: Shouldering.
Other type of operation: Facing, Helical interpolation, slotting, ramp down.
