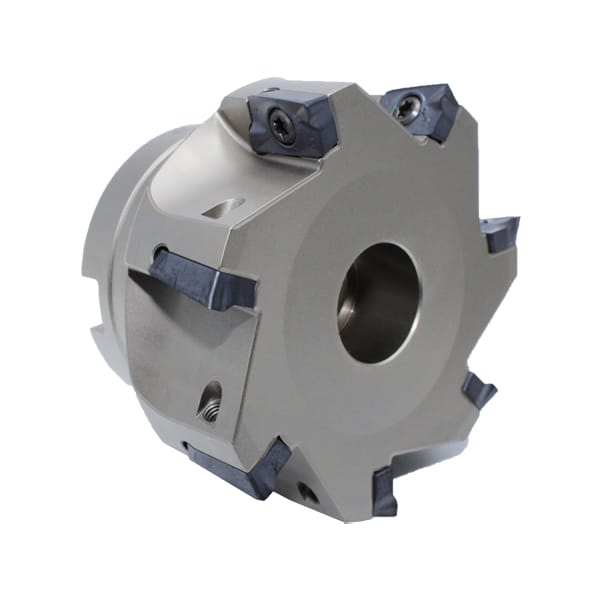

• 90° APKT/APMT1604 Face Mill Cutter
• Suitable for Facing, Shoulder Cutting, Slotting, Helical interpolation and Pocketing
• Diameter D : 2.0″
• Bore Diameter B : 0.750″
• Height H : 1.57″
• Seating Surface Diameter C : 1.575″
• Number of Pocket : 5
• Insert : APKT1604, APMT160

Face Milling Cutter 1.97″
Arbor Mounting 1″
Including a wrench
ZINC coated
Insert APKT/APMT16
No. of Inserts: 4

• Shoulder milling
• Strong insert and low cutting force
• Helical cutting edge
• Good ship evacuation

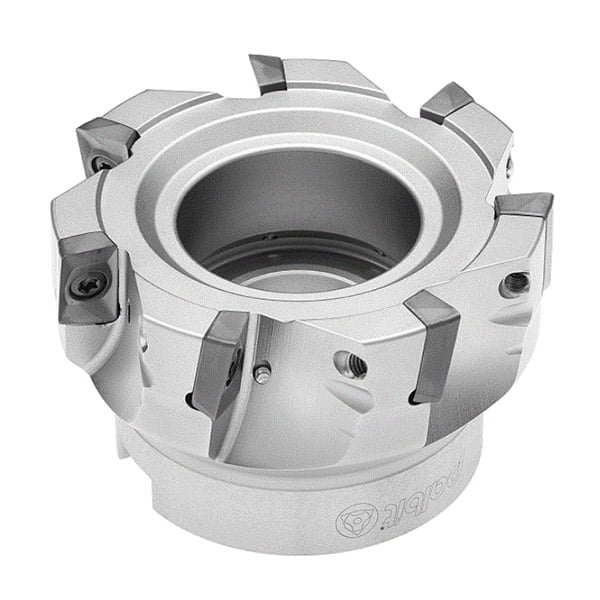

• 3.000″ cutter
• Arbor mounting, 1.000″ coupling diameter, 2.000″ long
• 7 inserts of “APHT 1604…” or “APKT 1604…” size 16mm
• Operation (refer to the attached photo)
• Main type of operation: Shouldering
• Other type of operation: Facing, Helical interpolation, slotting, ramp down
