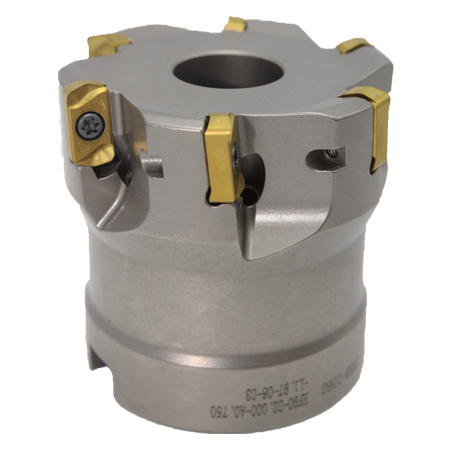

• Designation : HF90-D3.000-A1.000-L1.97-08-03
• Suitable for variety of operations : Facing, Shouldering, Helical interpolation and pocketing
• High Feed Indexable Face Mill Coolant Thru
• Diameter D : 3″
• ap : 0.040″
• Number of pocket : 8
• Bore diameter B : 1″
• Back end Diameter C : 2.37″
• Length L  : 1.97″
• Torx Key included
• Inserts : Double sided High Feed
• Inserts to order : LNMU0303
• Spare Screw: 10371061
• Inserts are sold separately

High feed cutting with low cutting load.
High productivity.

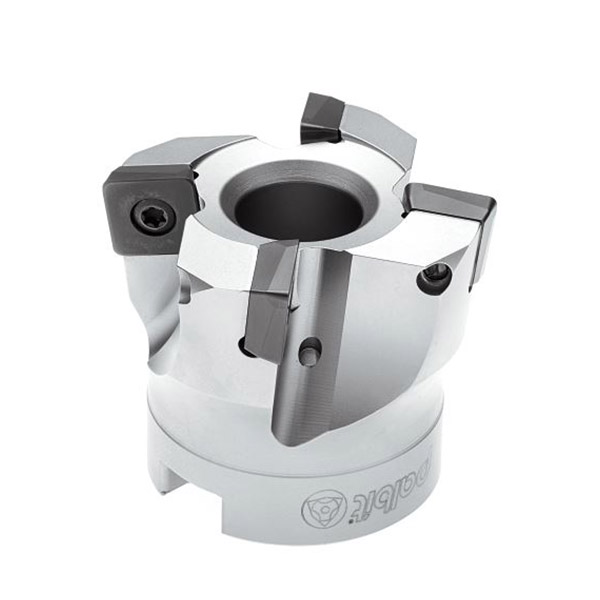

2.000″ diameter cutter. 10° facing, Arbor mounting, 0.750″ coupling diameter, 1.750″ long.
6 inserts of “SOET 0803…” , “SOEW 0803…” group and size 8mm.

Operation (refer to the attached photo)
Main type of operation: Facing, Profiling.
Other type of operation: Ramp down, Plunging, Helical interpolation.
