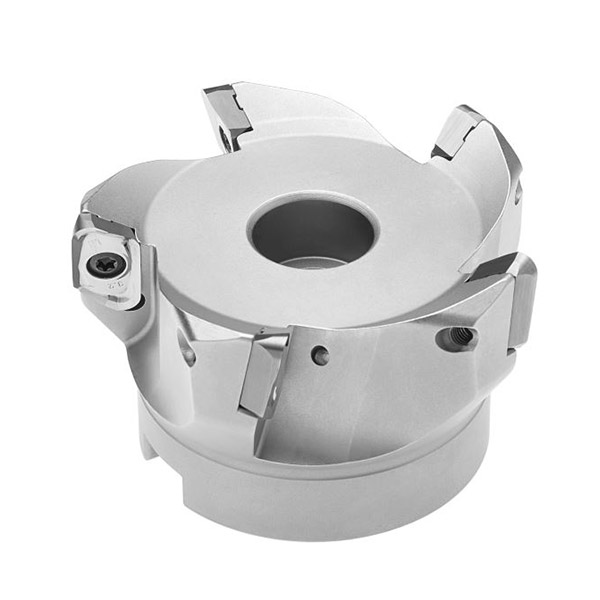

Shoulder milling.Solution for multi functional milling operations on aluminum alloys
High speed conditions with high metal removel rate
Stable clamping conditions (Anti-fly)
High rake angle geometry that provides a good surface finish and low cutting forces
2.000″ diameter cutter. Arbor mounting, 0.750″ coupling diameter, 2.000″ long. 4 inserts of “XDGX 15M5…” size 15mm. 24,000 RPM Max.
Operation (refer to the attached photo)
Main type of operation: Shouldering.
Other type of operation: facing, slotting, Ramp down, Helical interpolation, Profiling.
$583.02
Out of stock

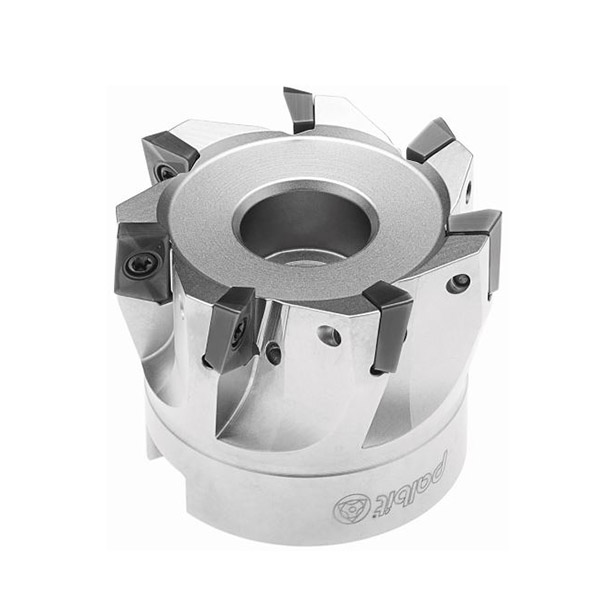

Excellent solution for square shoulder milling
Offers longer tool life, better tolerances and better productivity parameters
Low power requirement & smooth cutting possible due to positive helical angle
Very flexible and suitable for most milling operations
High positive cutting rake geometry
2.000″ diameter cutter. Arbor mounting, 0.750″ coupling diameter, 1.575″ long. 7 inserts of “XPET 1003…” size 10mm.
Operation (refer to the attached photo)
Main type of operation: Shouldering.
Other type of operation: Facing, Helical interpolation, slotting, ramp down.
$392.90
1 in stock
