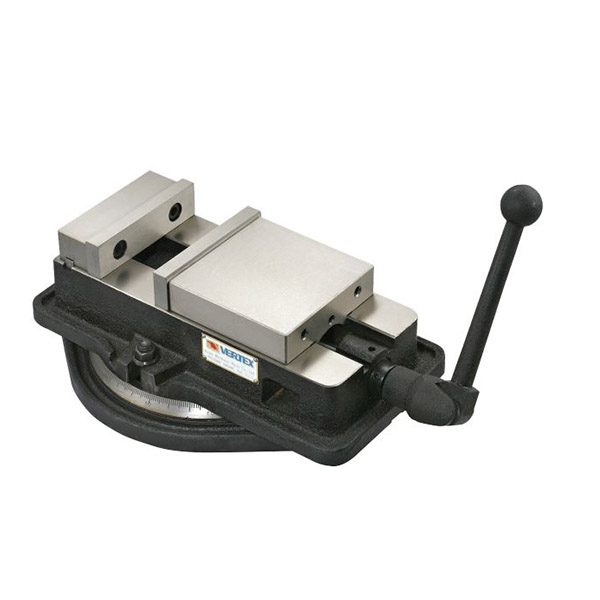

Opening: 4.3″/Width: 5.3″/Depth: 1.4″
Accuracy within 0.02mm

The enclosed lead screw and sliding surface are harden and ground.
Highest clamping power. It’s very accurate and durable.
This Vise is so designed that the horizontal Force generated by tightening the handle pushes the semisphere within the
movable jaw and thus thrusts the movable jaw downward – angle lock feature.
There fore, the workpiece does not lift, even if it is held at the top of the jaw plates.
Four setting positions of the jaw plates are available, widening the jaw plates opening.

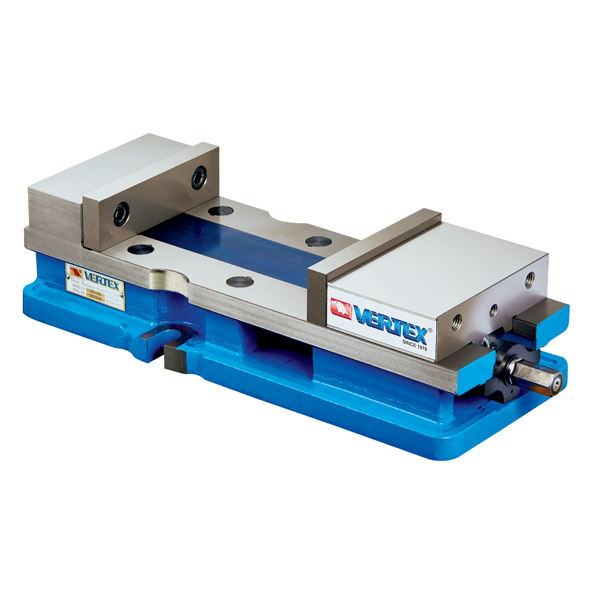

• High Precision Ang-Fix Machine Vise
• Width of Jaw : 6″
• Jaw Opening : 6″
• Depth of Jaw : 1.8″
• Bed’s height : 2.83″
• Accuracy  : 0.0008″
• Jaws downward mechanism does not allow the workpiece lifting
• The Swivel base is not included
• Brand : VERTEX

Opening: 7.5″/Width: 6.3″/Depth: 1.9″
Accuracy within 0.02mm

The enclosed lead screw and sliding surface are harden and ground.
Highest clamping power. It’s very accurate and durable.
This Vise is so designed that the horizontal Force generated by tightening the handle pushes the semisphere within the
movable jaw and thus thrusts the movable jaw downward – angle lock feature.
There fore, the workpiece does not lift, even if it is held at the top of the jaw plates.
Four setting positions of the jaw plates are available, widening the jaw plates opening.

Opening: 9.1″/Width: 6.1″/Depth: 1.8″
Accuracy within 0.02mm

The enclosed lead screw and sliding surface are harden and ground.
Highest clamping power. It’s very accurate and durable.
This Vise is so designed that the horizontal Force generated by tightening the handle pushes the semisphere within the
movable jaw and thus thrusts the movable jaw downward – angle lock feature.
There fore, the workpiece does not lift, even if it is held at the top of the jaw plates.
Four setting positions of the jaw plates are available, widening the jaw plates opening.
