HV-16 HORIZONTAL/VERTICAL ROTARY TABLE

SKU: 1001-006 Category:

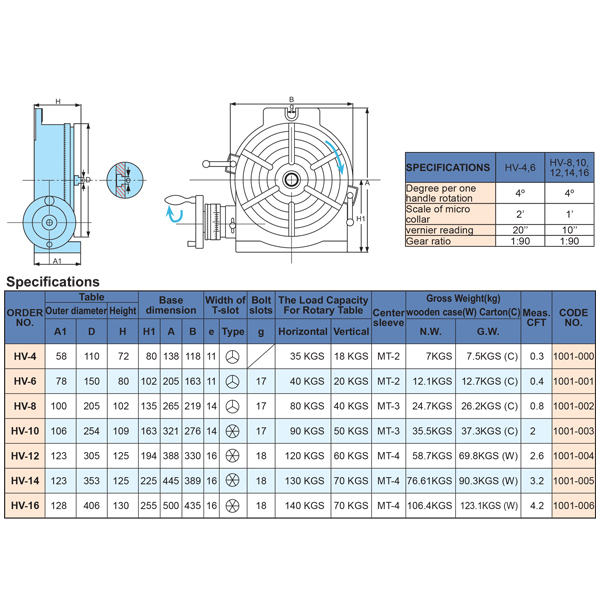

  • HV-16 rotary table has a table diameter of 16″ (406mm)
  • Capacity : 308 lb (140Kg) in horizontal and 154 lb (70Kg) in vertical position
  • 4° table rotation per each handle rotation.
  • Micro collar is graduated in steps of 1’min
  • Vernier scale makessettings down to 10 seconds possible
  • Indexing accuracy of direct Indexing mechanism Maximum cumulative spacing error 1 minute.

$2,869.89

2 in stock

HV-16 rotary table is made of high density Meehanite metal and hardened/ground gearing to assure the excellent quality and durability. Very steady under load cutting.

These Rotary Tables are popular for their excellent performance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work.

As optional accessories it can be working with our other products like Tailstock TS-4, 3-Jaw chuck VSC-10A/VSC-10A.

  • Weight:
    234.88 lbs
  • Dimensions:
    28 × 24 × 12 in
